DMR Cult Crank Euro Bottom Bracket Kit

£40.00

Options	(Item# 5055308101930 DMR-SC-CULT-BB) In Stock
Description	19mm ID (Internal Diameter) resting bearing surface DMR Cult crank Euro bottom bracket kit includes: = Left and Right Hand cups fitted with two custom bearings in each cut (please ignore the bearing number it is not correct) = 1x Bearing spacer 19mm ID 23mm OD (Over All Diameter) 53mm Width (if you have a 68mm bottom bracket shell on your frame please remove 5mm from this spacer using a pipe cutter) = 1x Top Hat Spacer ID 19mm Shoulder 15/16" OD 28mm 7mm Width =1x Drive Side Face Bearing Spacer ID 19mm Shoulder 29.5mm OD 30mm 2mm Width = 1x Non Drive Side Face Bearing Spacer ID 19mm Shoulder 29.5mm OD 30mm 8mm Width = 2x Crank Arm Spacer ID 19mm OD 26mm 3mm Width = 2x Crank Arm Spacer ID 19mm OD 26mm 1.5mm Width = 2x Crank Arm Spacer ID 19mm OD 26mm 0.5mm Width

Options

(Item# 5055308101930 DMR-SC-CULT-BB) In Stock

Description

19mm ID (Internal Diameter) resting bearing surface

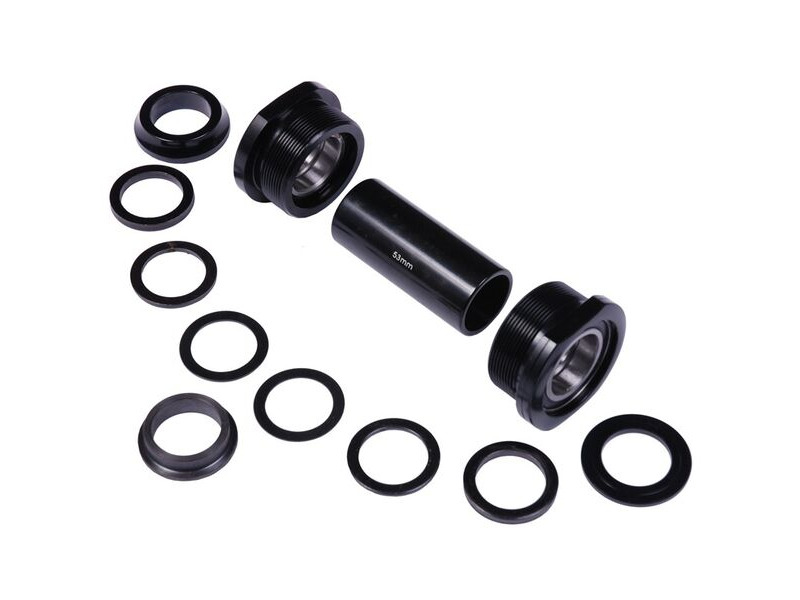

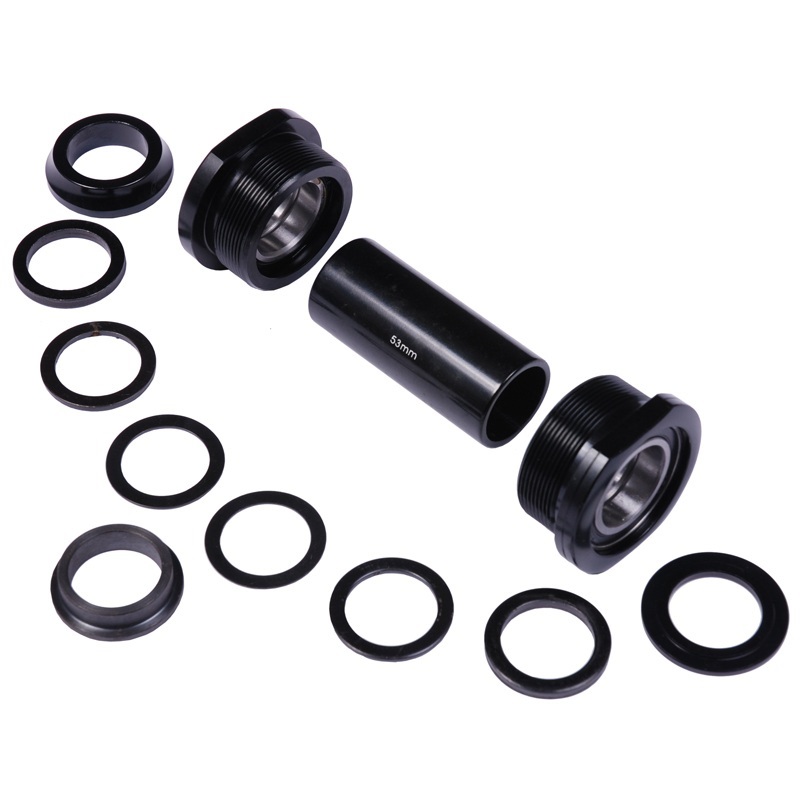

DMR Cult crank Euro bottom bracket kit includes:

= Left and Right Hand cups fitted with two custom bearings in each cut (please ignore the bearing number it is not correct)
= 1x Bearing spacer 19mm ID 23mm OD (Over All Diameter) 53mm Width (if you have a 68mm bottom bracket shell on your frame
please remove 5mm from this spacer using a pipe cutter)
= 1x Top Hat Spacer ID 19mm Shoulder 15/16" OD 28mm 7mm Width
=1x Drive Side Face Bearing Spacer ID 19mm Shoulder 29.5mm OD 30mm 2mm Width
= 1x Non Drive Side Face Bearing Spacer ID 19mm Shoulder 29.5mm OD 30mm 8mm
Width

= 2x Crank Arm Spacer ID 19mm OD 26mm 3mm Width
= 2x Crank Arm Spacer ID 19mm OD 26mm 1.5mm Width
= 2x Crank Arm Spacer ID 19mm OD 26mm 0.5mm Width

As with any product, specification is subject to change without prior notification. You are advised to confirm current availability and specification before buying.
